Air Compressor & Vacuum Pump (Parallel Connecting)
|
| |
■
Model Number
- 80RND,100RND, 120RND, 140RND
■
Applications
- Medical, Dental & E.N.T. equipment
- As an oil-less air compressor and
Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipment
- Industrial equipment |
|
|
| |
| ■
Technical Specifications |
|
Oil-less
Piston Pump , Double Head Type (Parallel
Connecting) |
| Model |
140RND |
120RND |
100RND |
80RND |
| Head
Config |
Pressure / Vacuum |
| Free
Flow |
140
LPM |
120
LPM |
100
LPM |
80
LPM |
| Max.
Vacuum |
700
mmHg |
690
mmHg |
680
mmHg |
650
mmHg |
| Max.
Pressure |
2
bar |
4
bar |
7
bar |
7
bar |
| Connecting
Type |
PT 1/4 " |
| Dimensions |
240(L) x 157(H) x
118(W) mm |
| Installation
Hole |
202 X 84 mm / M6 Tap |
| Weight |
7.1 Kg |
| Noise
Level |
55~57 dB |
| Motor
Power |
200 W |
| Motor
Type |
Capacitor start, Equipped
with cooling fan & Thermal Protector |
| Power
source |
100~110VAC(50/60Hz),
200~220VAC(50/60Hz), 230~240VAC(50Hz) |
|
| Above data are based on 220VAC/60Hz,
please contact us for future information. |
| |
| ■
Performance Curves |
 |
Above data are based on 220VAC/60Hz, please
contact us for future information.
Enlarge Performance curve |
| |
| ■

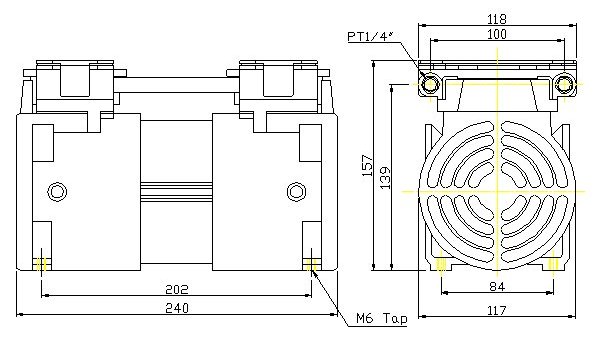

Rawing |
 |
|
| |
 |
| |
